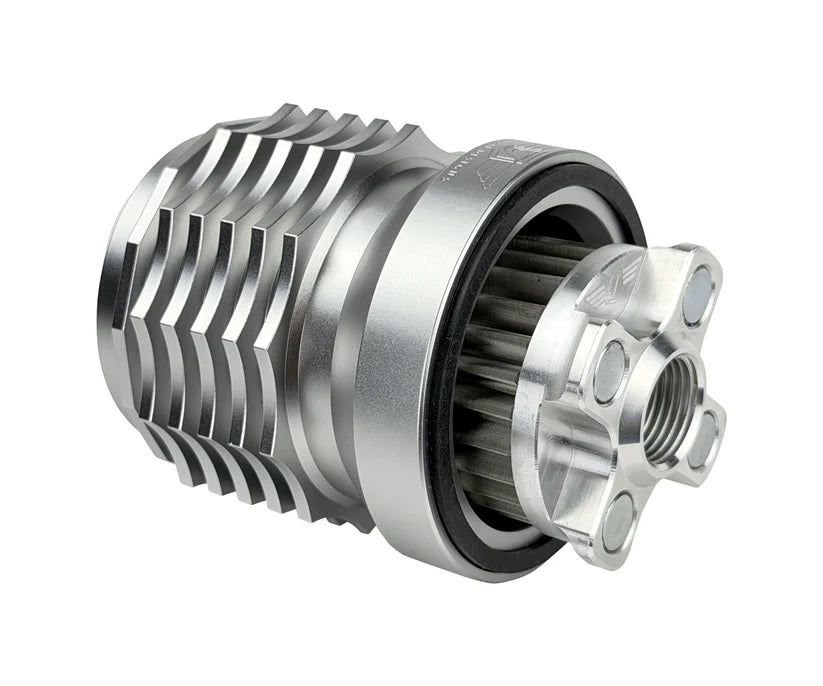

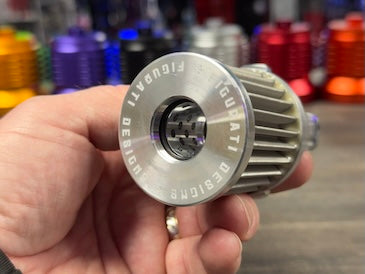

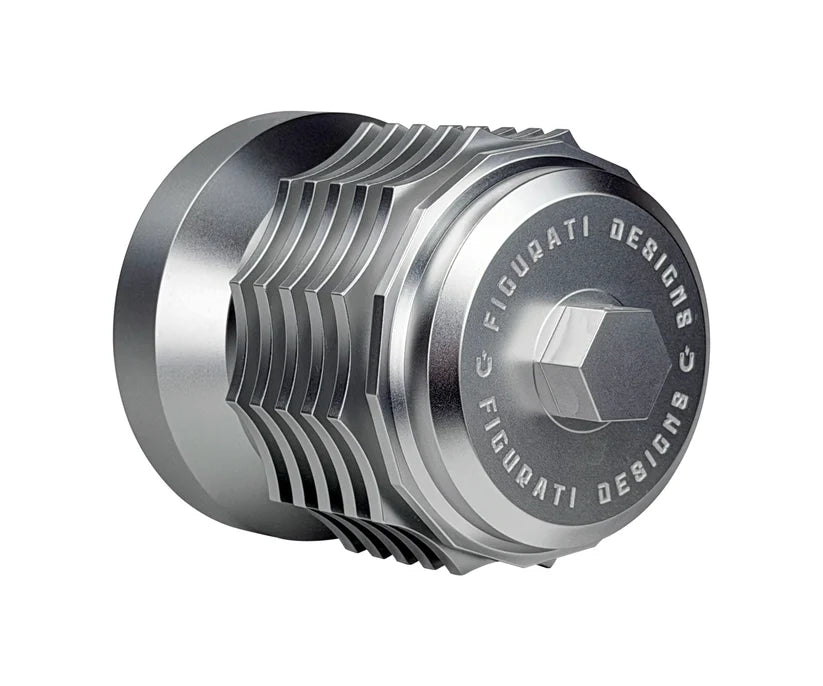

Filter more impurities than the competition with the only oil filter that has a powerful magnet on the inside. High-grade anodized aluminum housing integrates 4 external pre-filtering magnets, superfine stainless-steel mesh, and a powerful internal 2000 gauss neodymium rare-earth magnet—a combination that filters particles down to a staggering 15-20 microns. With cleanable, reusable components and a flow rate 10 times greater than traditional paper filters, Figurati Designs™ Performance Magnetic Oil Filter is the future of filtering.
Recommendation:
Other Items You May Be Interested In:
INCLUDED:
- Aluminum Box

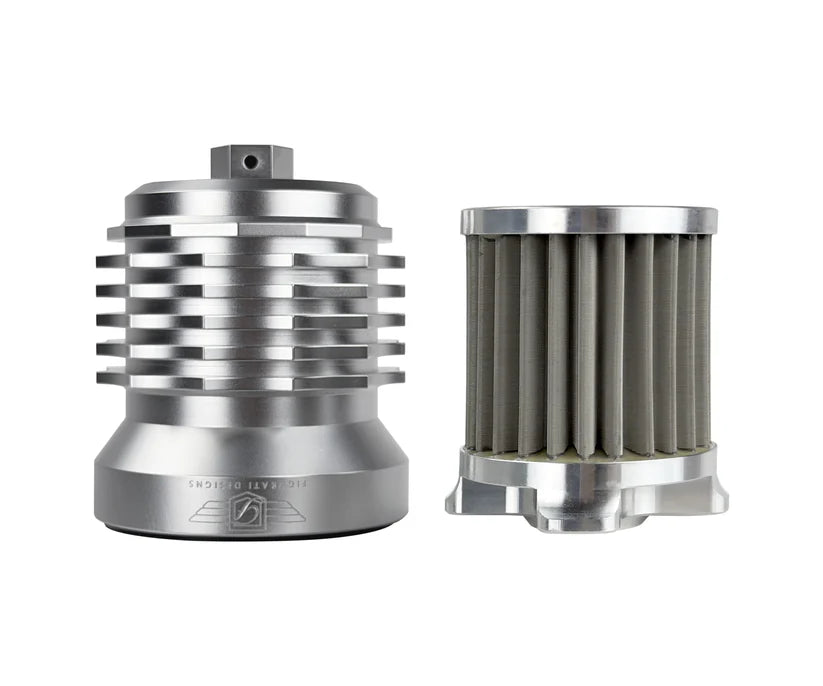

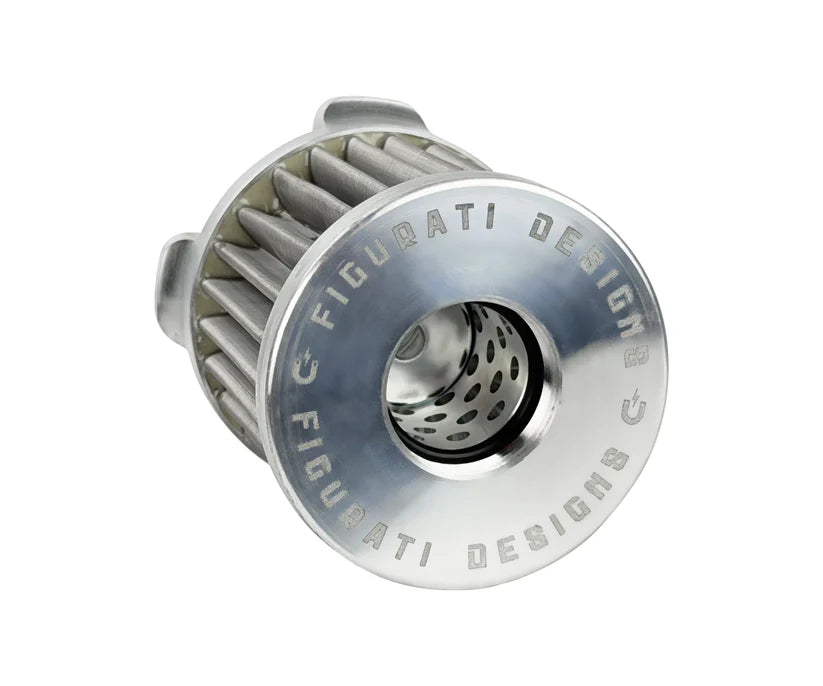

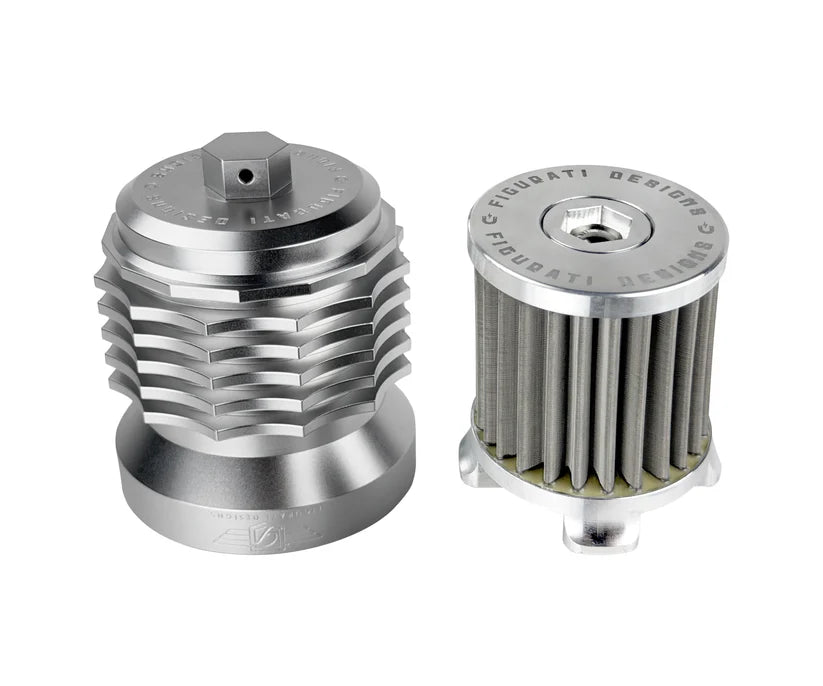

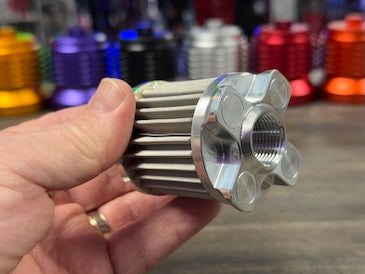

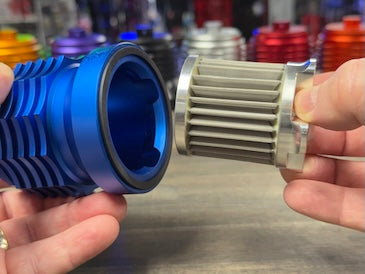

- Figurati aluminum oil filter housing with internal/removable oil filter

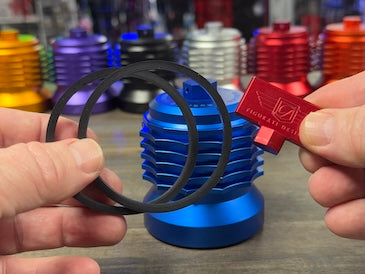

- 2 extra O-rings

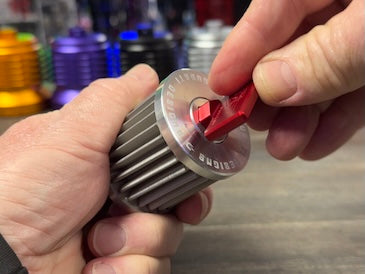

- Wrench/key for internal filter removal
FEATURES
- 6063 lightweight, high-strength anodized aluminum
- Powerful internal neodymium magnetic filtration

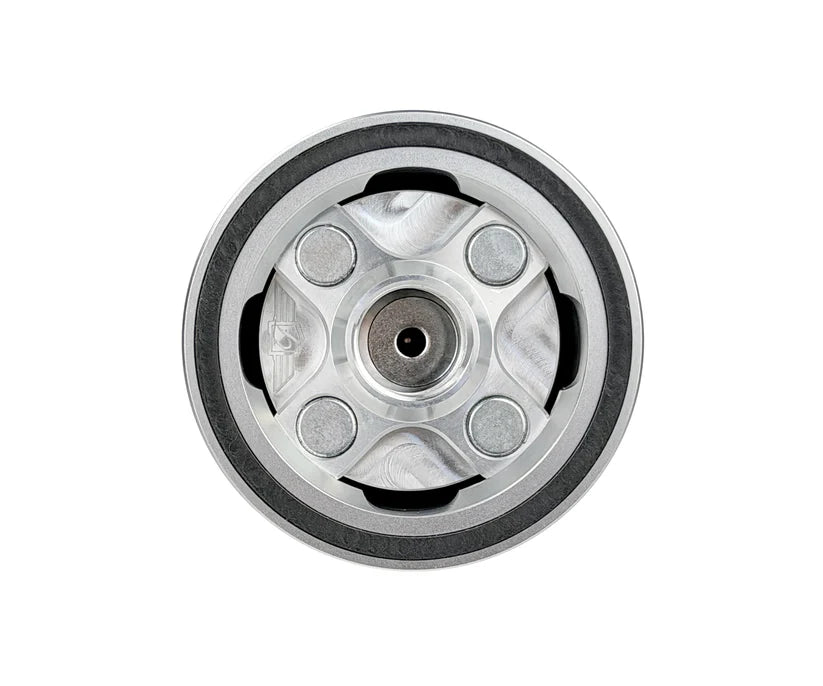

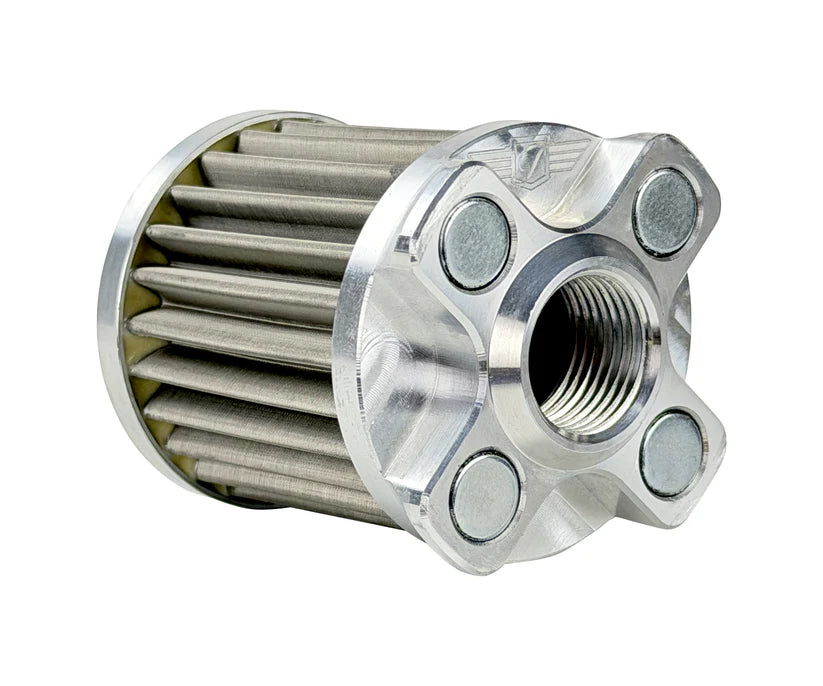

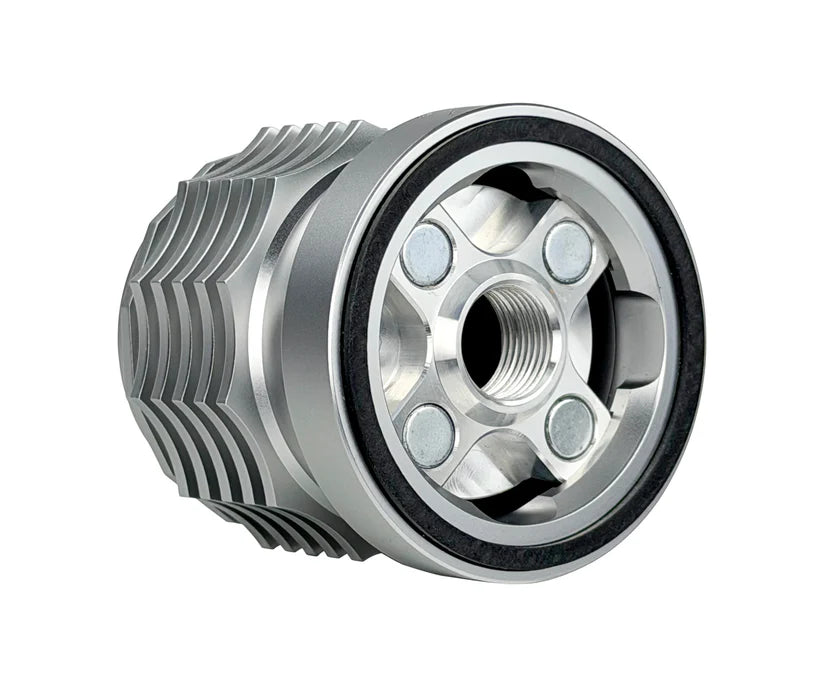

- 4 external pre-filtering magnets
- Cleanable and reusable
- Environmentally friendly
SPECS
- Filter level: 25 microns
- Filter Material: Stainless-steel and Aluminum

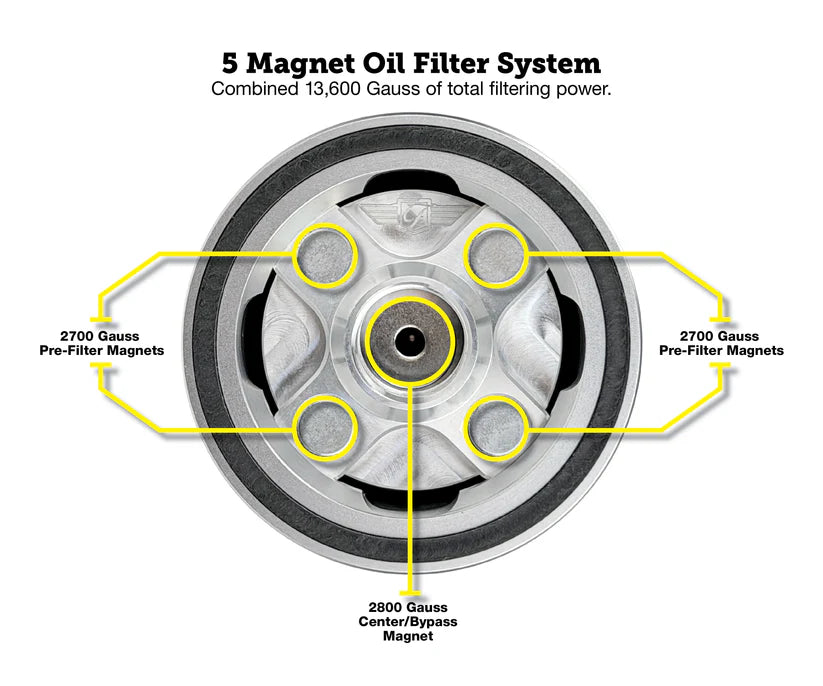

- Magnet Strength:
- Internal Magnet: 2800 gauss
- External Magnets: 2700 gauss *4
- Pressure relief valve threshold: 15 PSI
Cleaning instructions

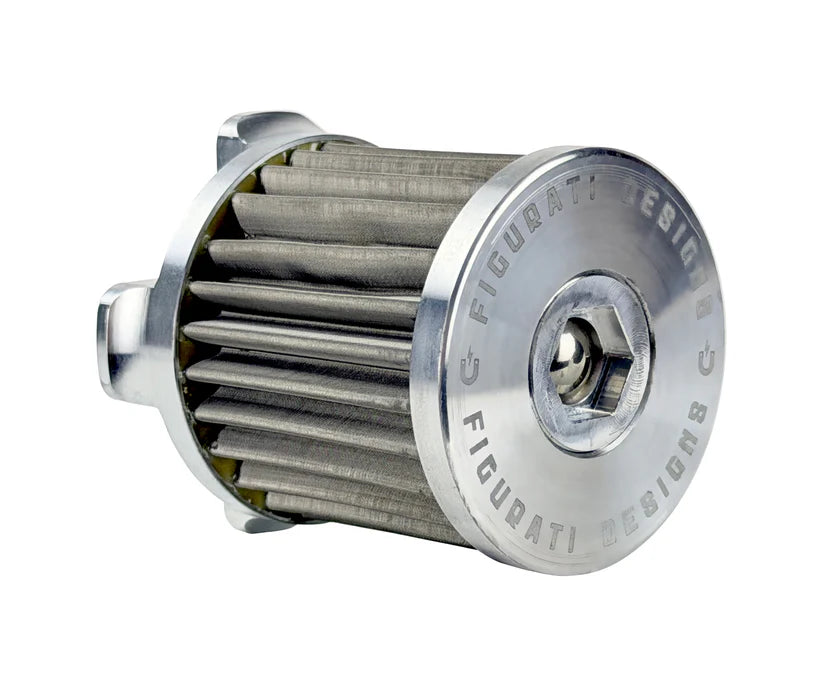

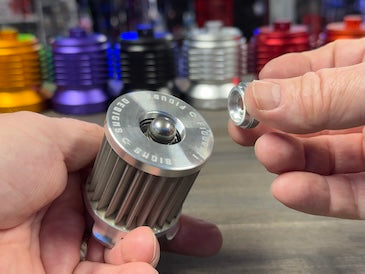

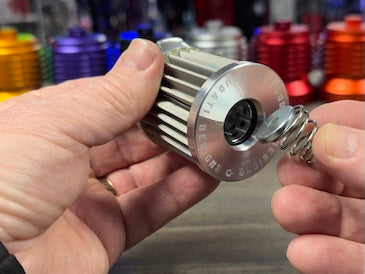

- Unscrew top nut
- Remove ball bearing, spring, and 2800 gauss center/bypass magnet
- Wipe down housing and components with a microfiber cloth
- Replace components
- Reinstall filter
OEM Oil Filter Comparison:
While some traditional Harley-style throwaway oil filters are published in the 5–10 micron range, that number alone does not tell the whole story because filter ratings can be measured differently and are not always a direct apples-to-apples comparison. The Figurati filter uses a 25-micron stainless-steel mesh, but it also adds a powerful internal magnet and four external magnets to capture ferrous metal debris before it continues circulating through your engine, while the mesh catches non-magnetic particles. So the real advantage of the Figurati is not just the micron rating alone, but the combination of magnetic filtration, reusable serviceable design, inspectability at each service, high flow, and added cooling fins. In short, it is a more complete oil filtration system, not just another throwaway filter.

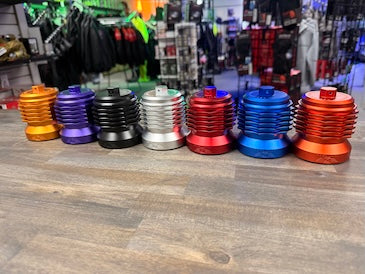

Manufacturer Part Numbers:

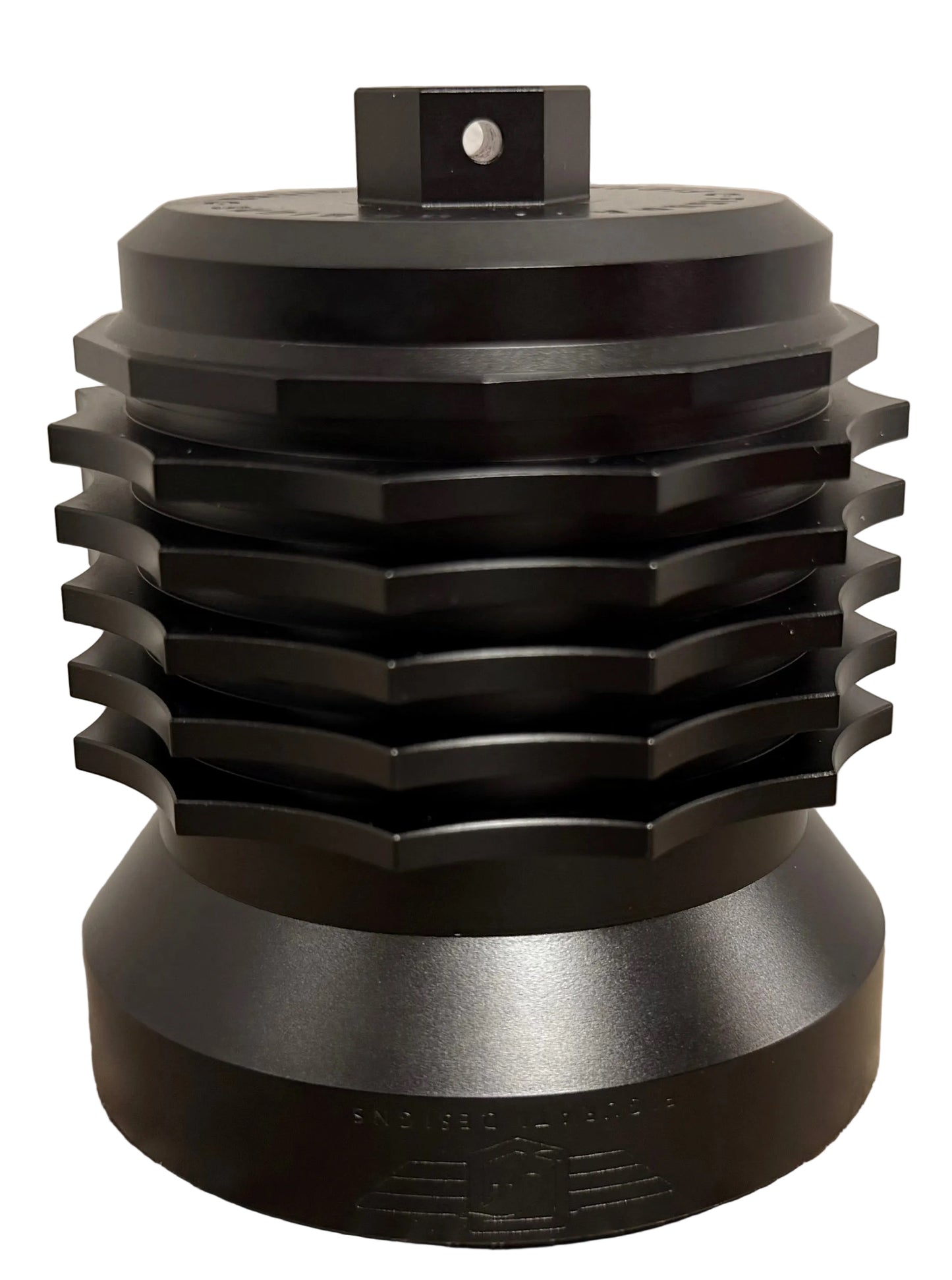

Black- FDP01-OILFIL-PAN-BLK

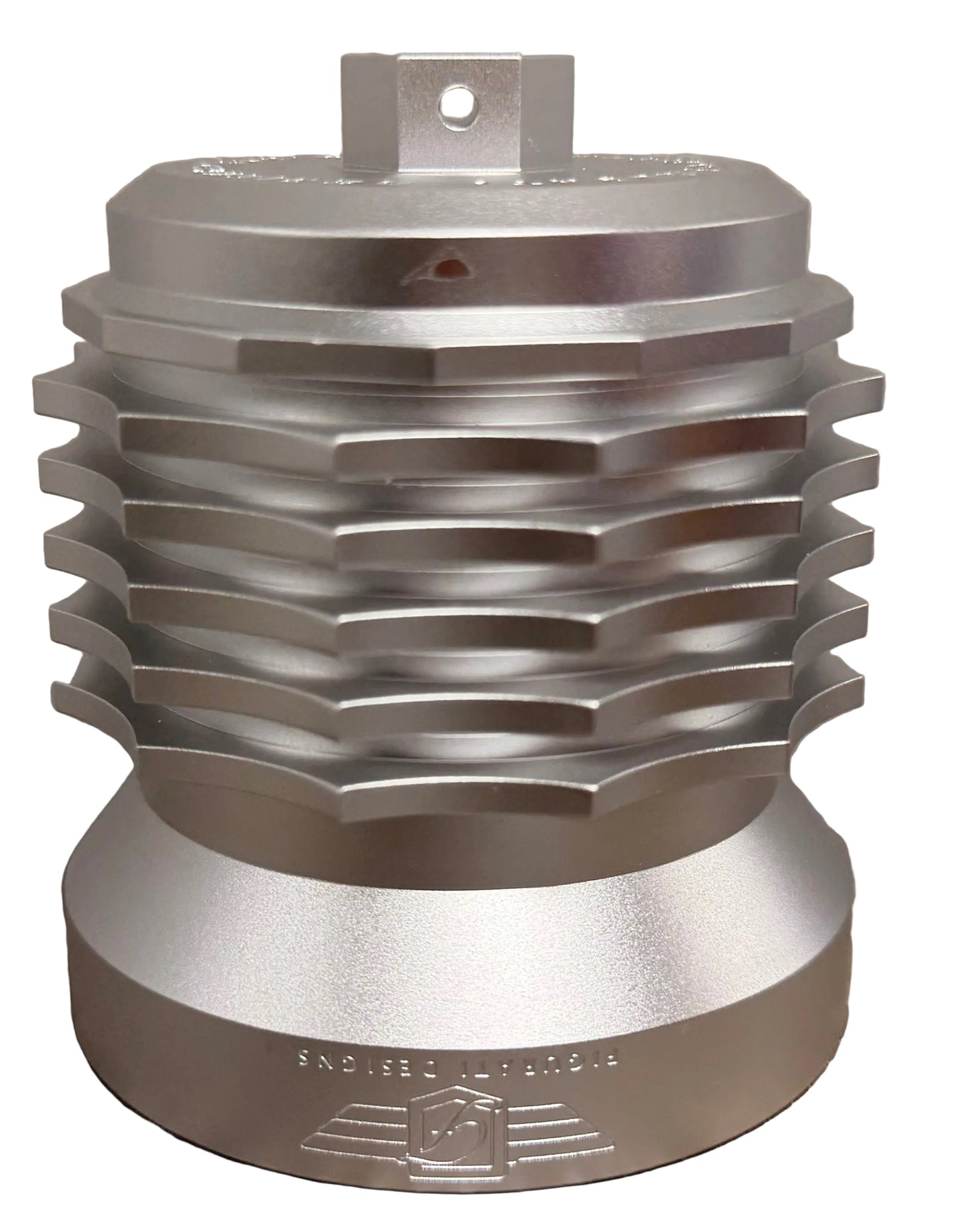

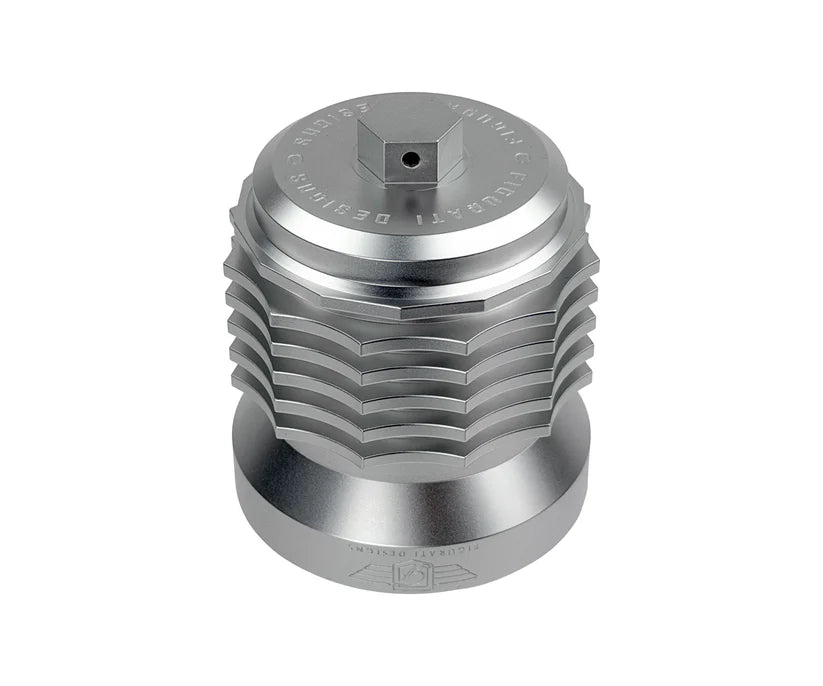

Silver: FDP01-OILFIL-PAN-S

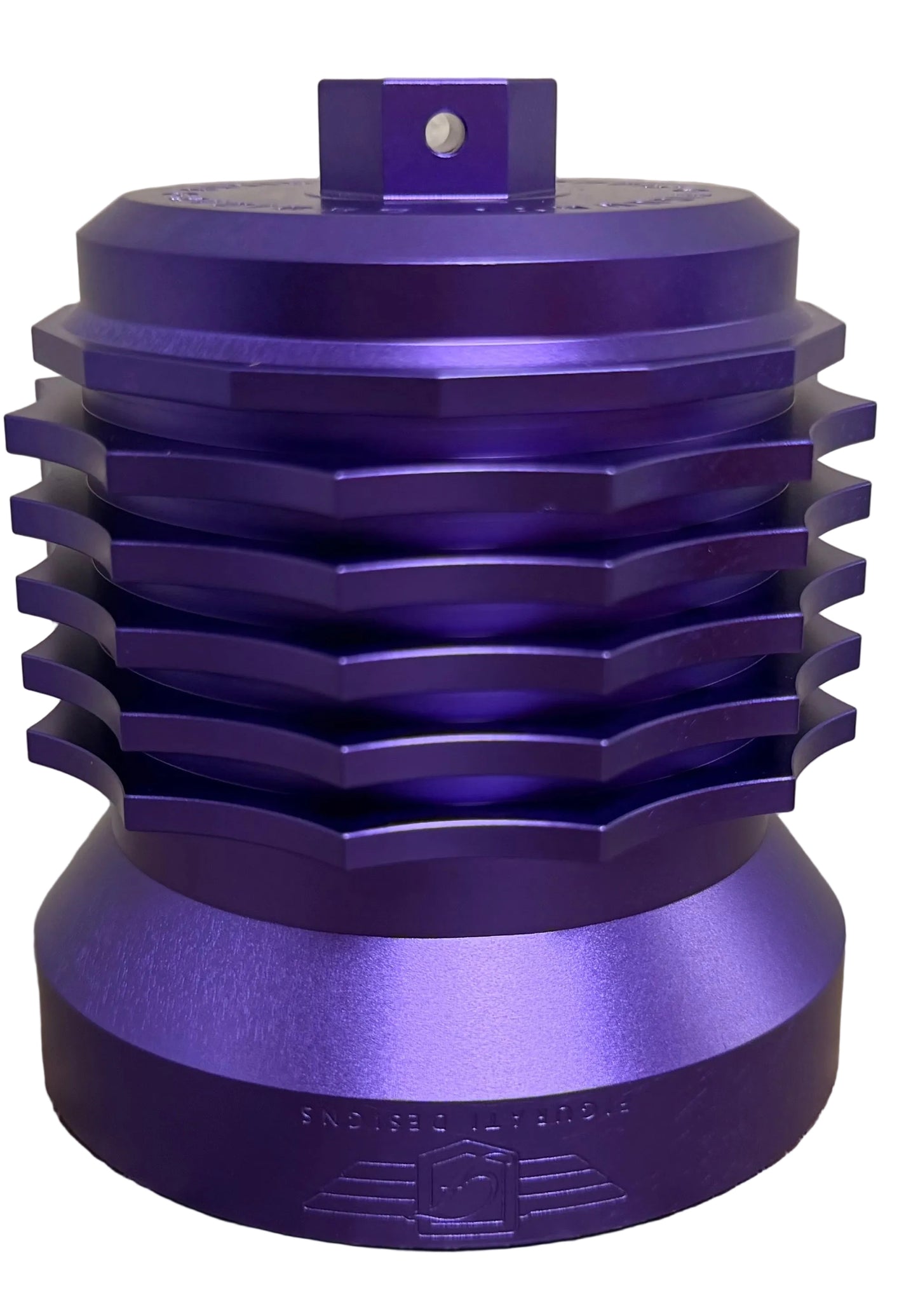

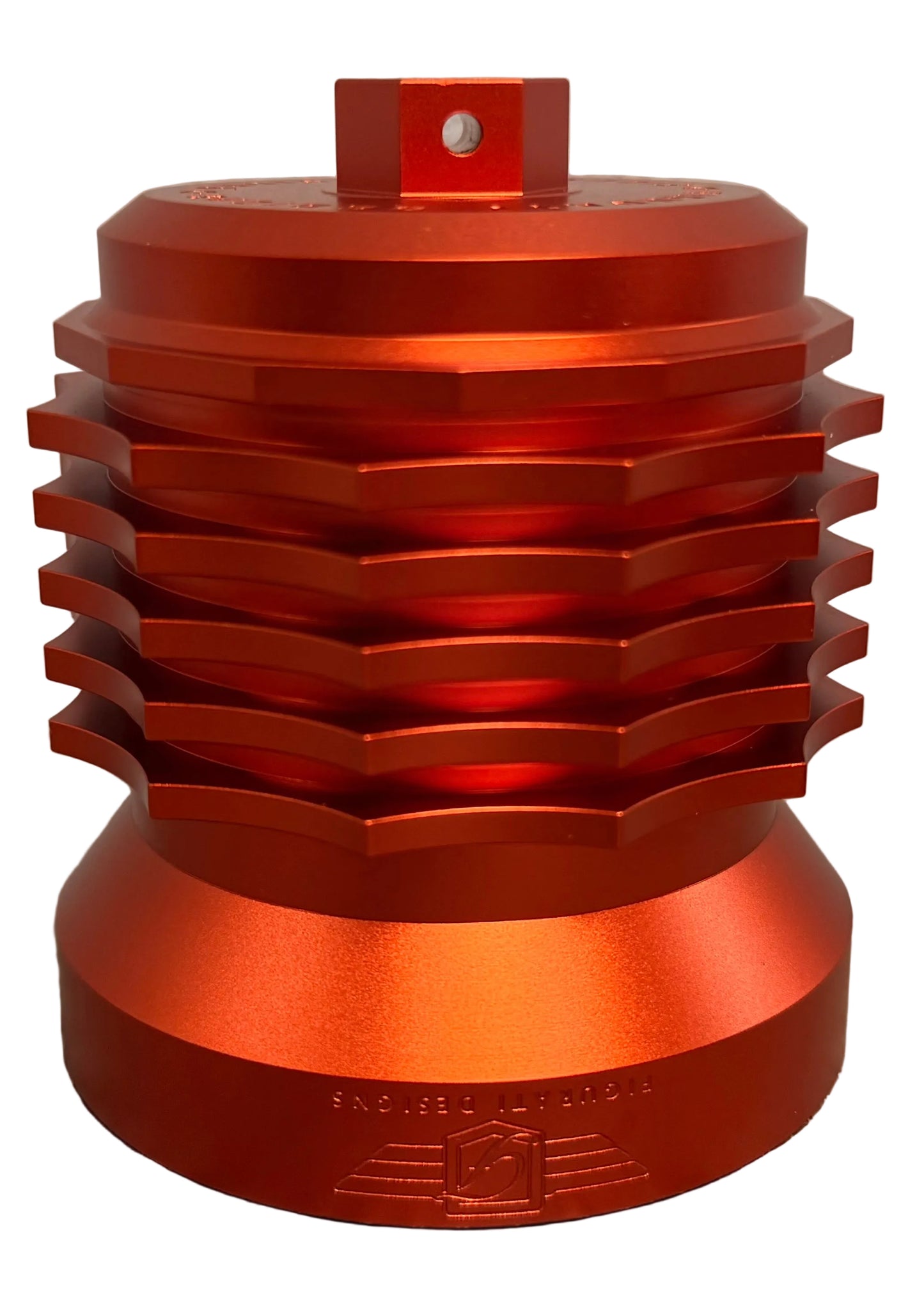

Orange- FDP01-OILFIL-PAN-O

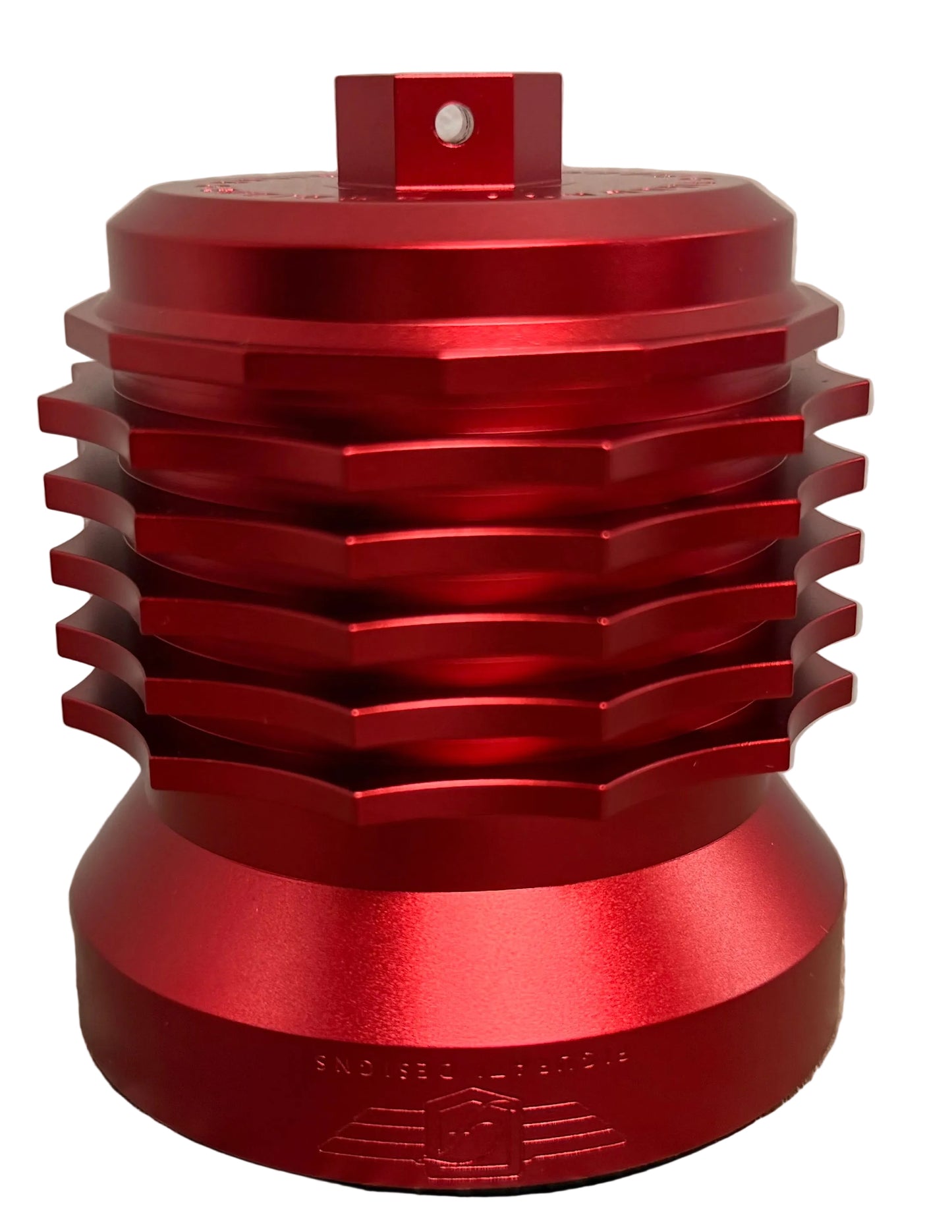

Red- FDP01-OILFIL-PAN-R

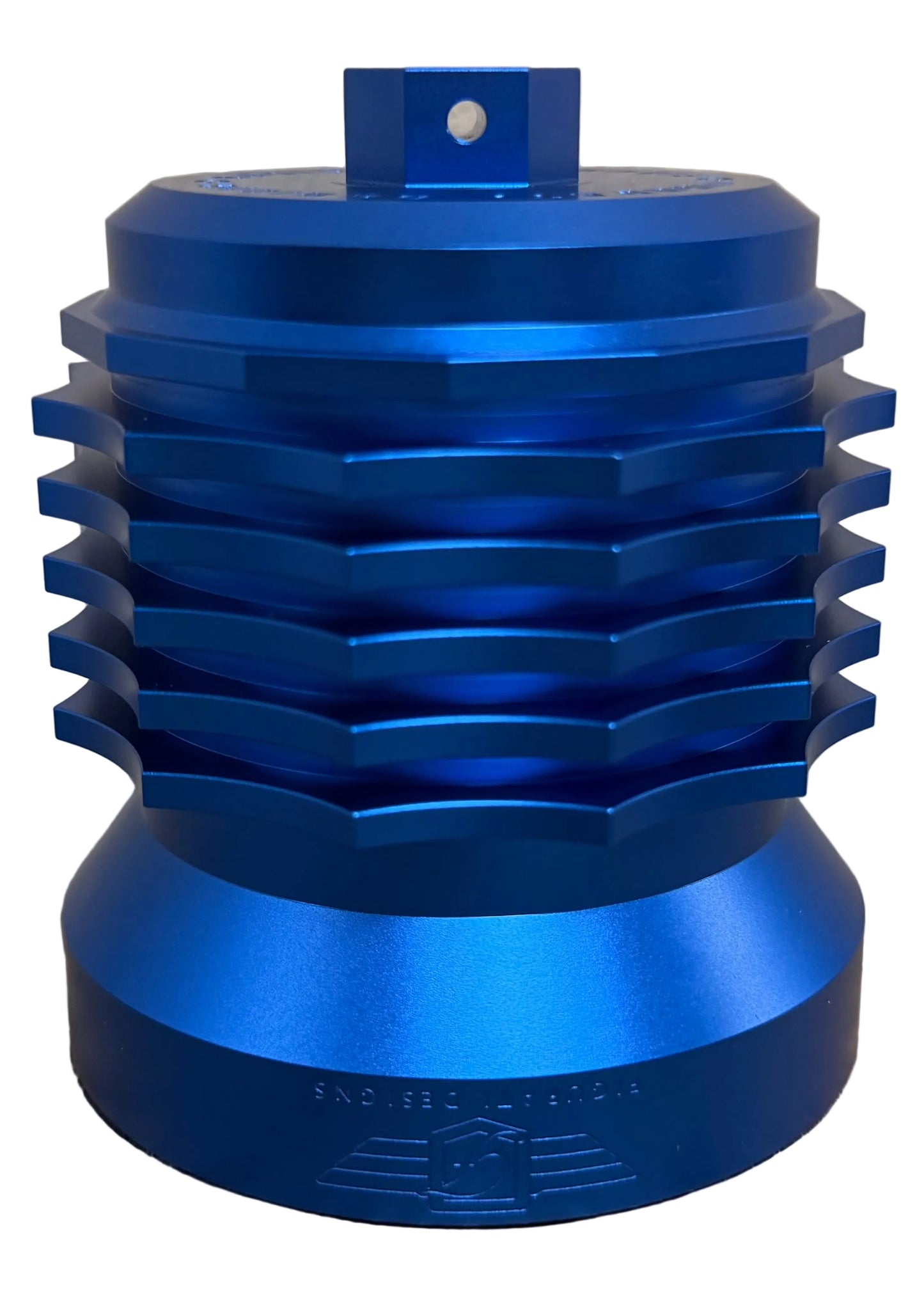

Blue-FDP01-OILFIL-PAN-B

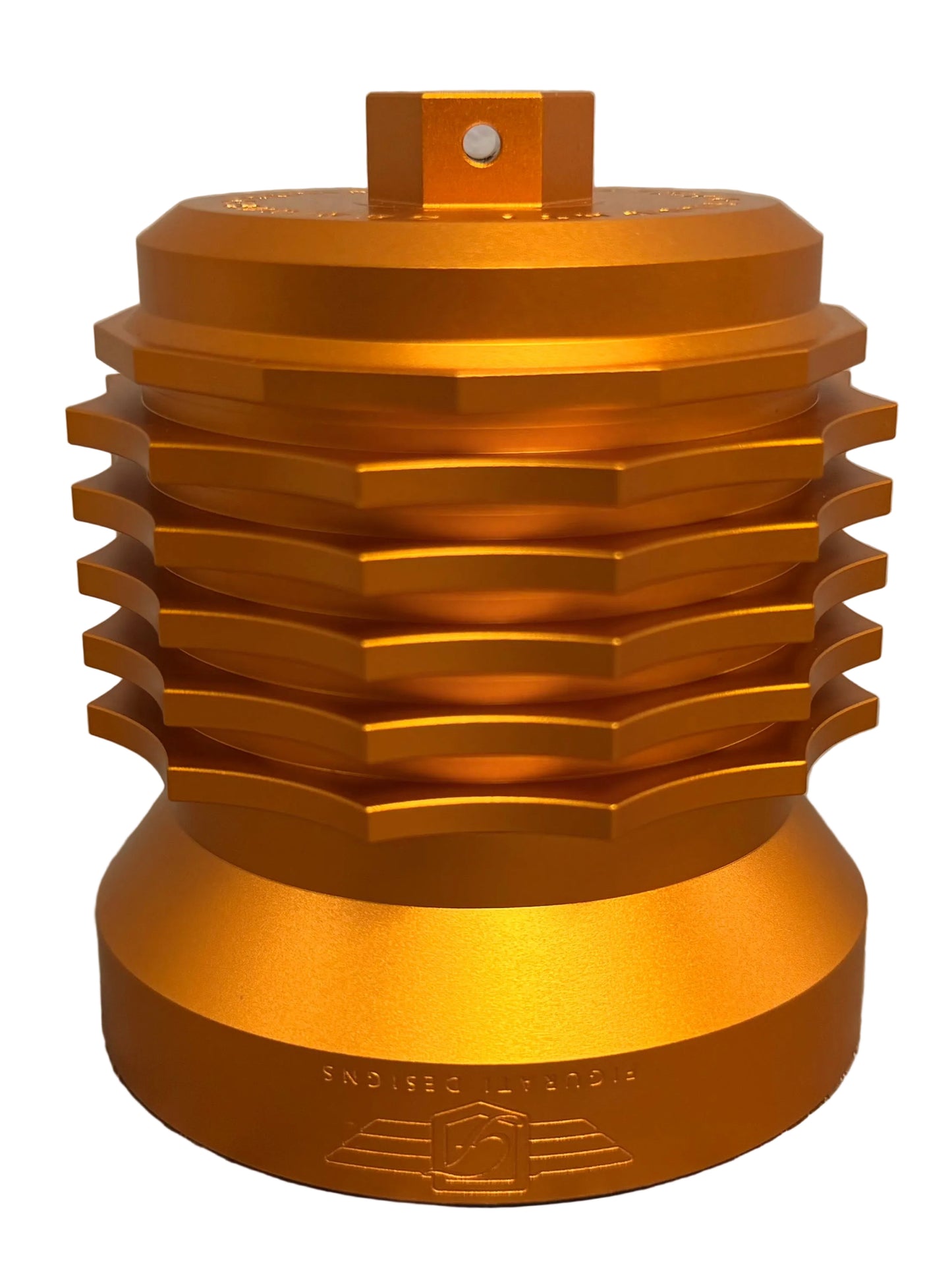

Gold-FDP01-OILFIL-PAN-G
Purple-FDP01-OILFIL-PAN-P
