Ciro 3D Vision X LED Lighting

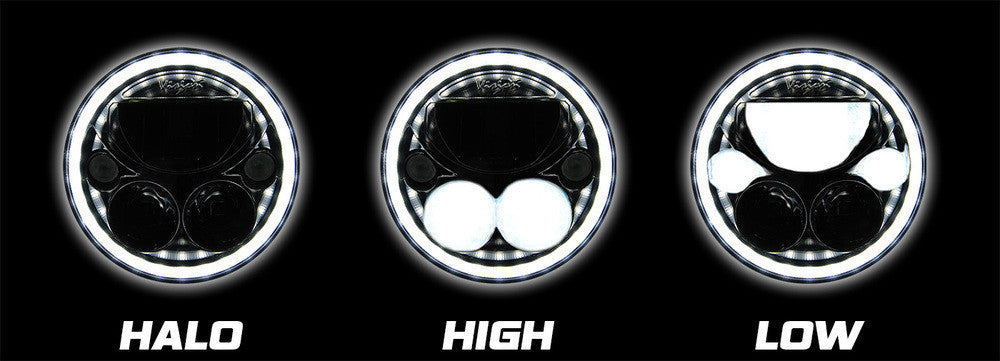

INFO on how to connect the WHITE HALO WIRE:
The white wire should be wired to a switched 12V power source in the fairing. There are two possibilities.
1: Splice the white wire from the headlight to the blue wire on the dual beam adapter.
2: In the harness going to the original headlight plug you should find an orange wire with a white stripe. It will have a spade connector on the end. Crimp on a connector on the white wire and plug into the orange/white wire.
Choose your appropriate wiring adapter (NOT INCLUDED): (click on adapter you need)

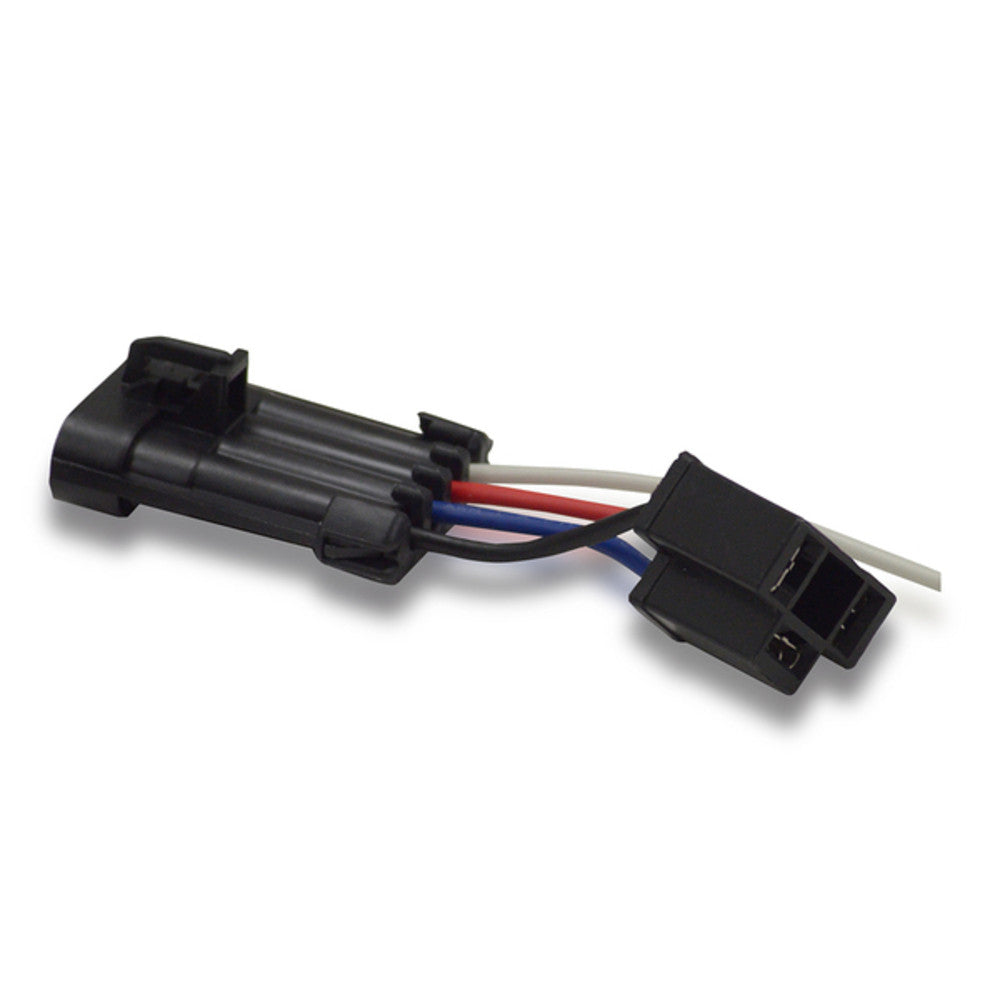

#45010 - Lighting adapter to convert Delphi flat 4 to H4 adapter. 2014 & newer Harley Street Glides see video below-time 5:56). This connects to the stock Harley Delphi which is about 6" back from the stock light connection.
2014-up Harley-Davidson Electra Glide, Street Glide, Limited, Ultra, Ultra Classic & Tri-Glide models require part# 45010, XMC-H42DELPHI Delphi flat 4 to H4 adapter for installation if replacing the Stock Harley LED. If you have a Dual Halogen stock headlight see below.
2014-up Road King requires the 45011 H4-H9 Dual Beam Adapter

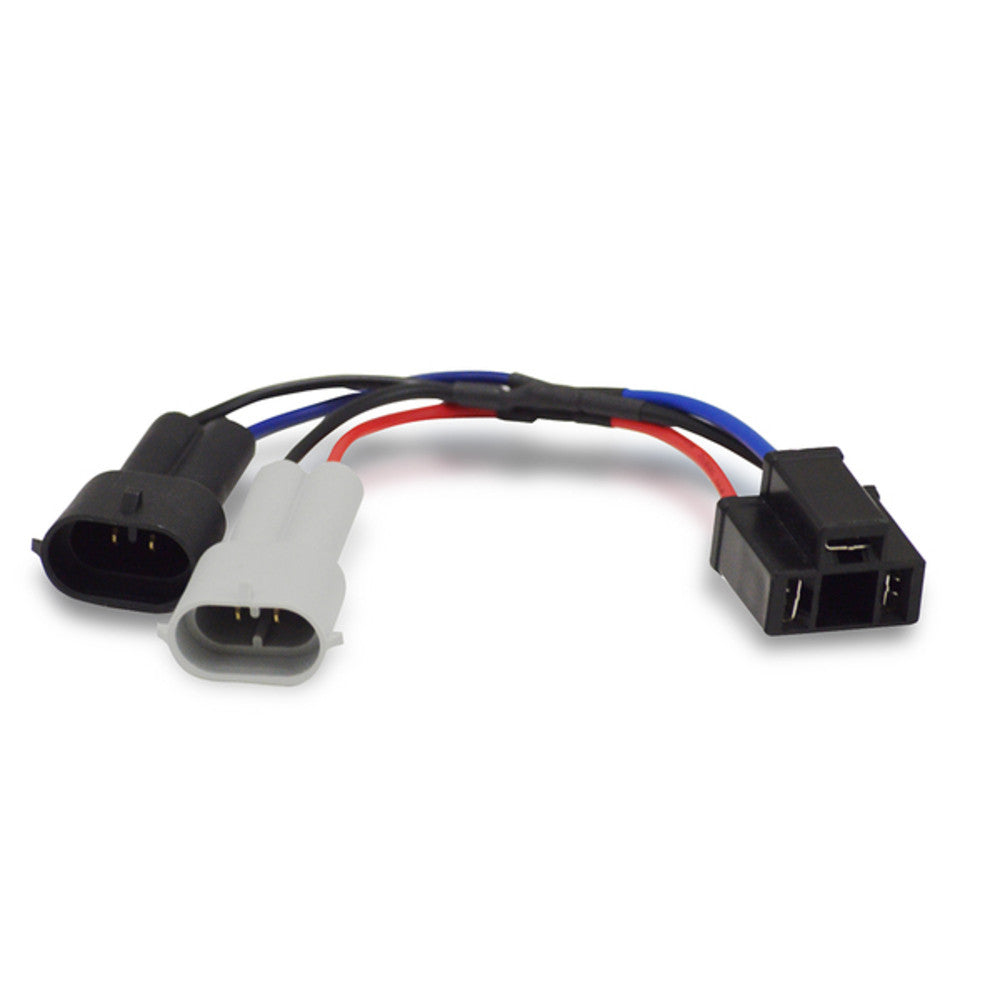

#45011 - Lighting adapter for Dual Halogen to LED. 2014 and newer Harley Road King & Electra Glide Classic & Ultra Models.
Additional Adapter (not required)
#45012 - "High Four" all on adapter and is designed to accompany the Vision X LED Headlight. This allows the high and low beams to shine simultaneously. This is not needed on 2014 & Up Street Glides.
Note: Adapter not needed for 2013 and older models, but if you want the hi-low to be on at the same time in high beam use 45012.
**Wiring adapters do not come with Vision X Headlight (sold separately).

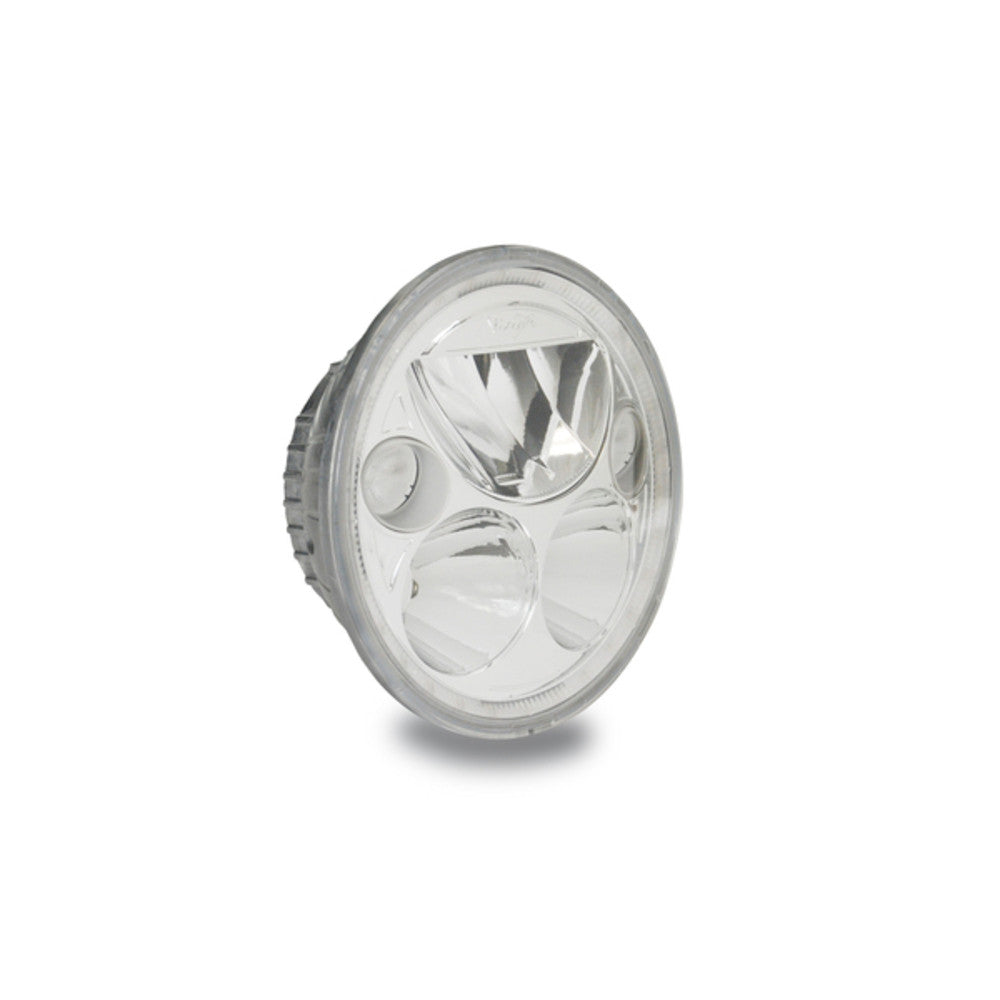

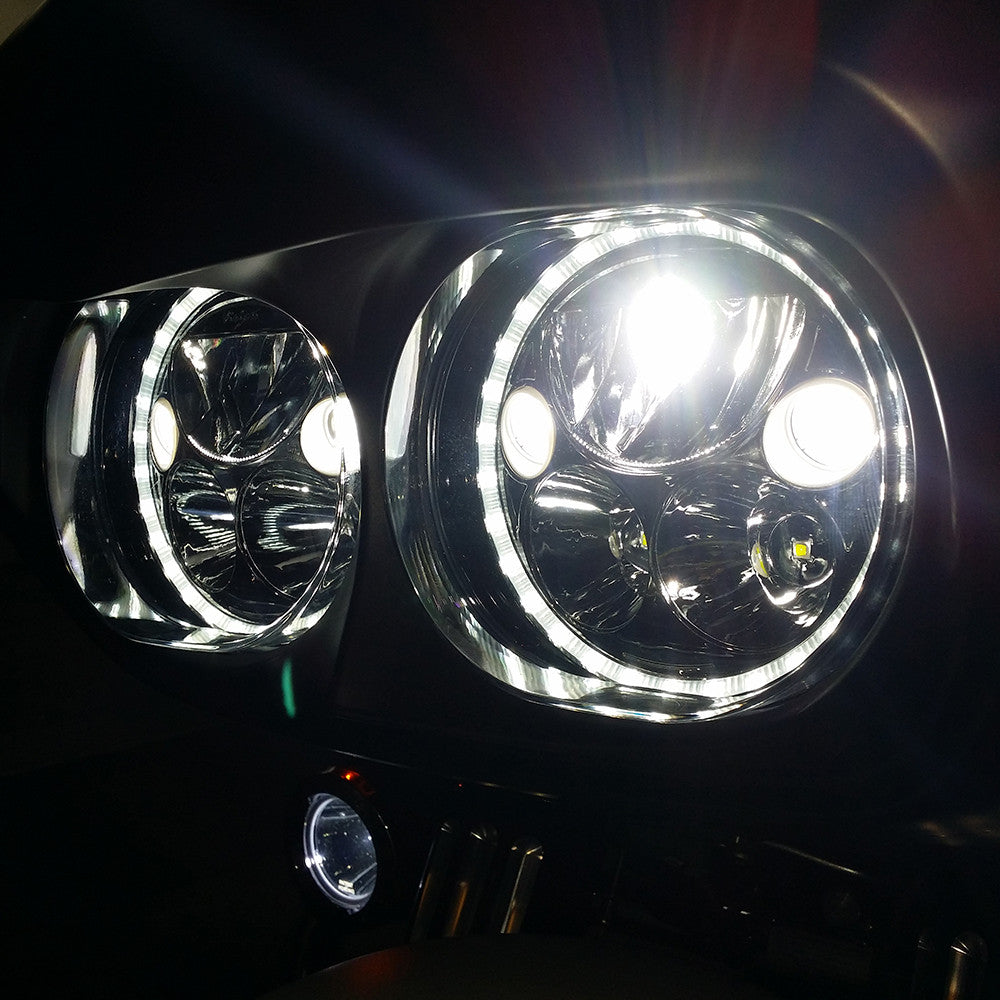

Light the night with this super bright and durable LED headlight from Vision X. Glow ring is integrated and the light is backed by a lifetime warranty!

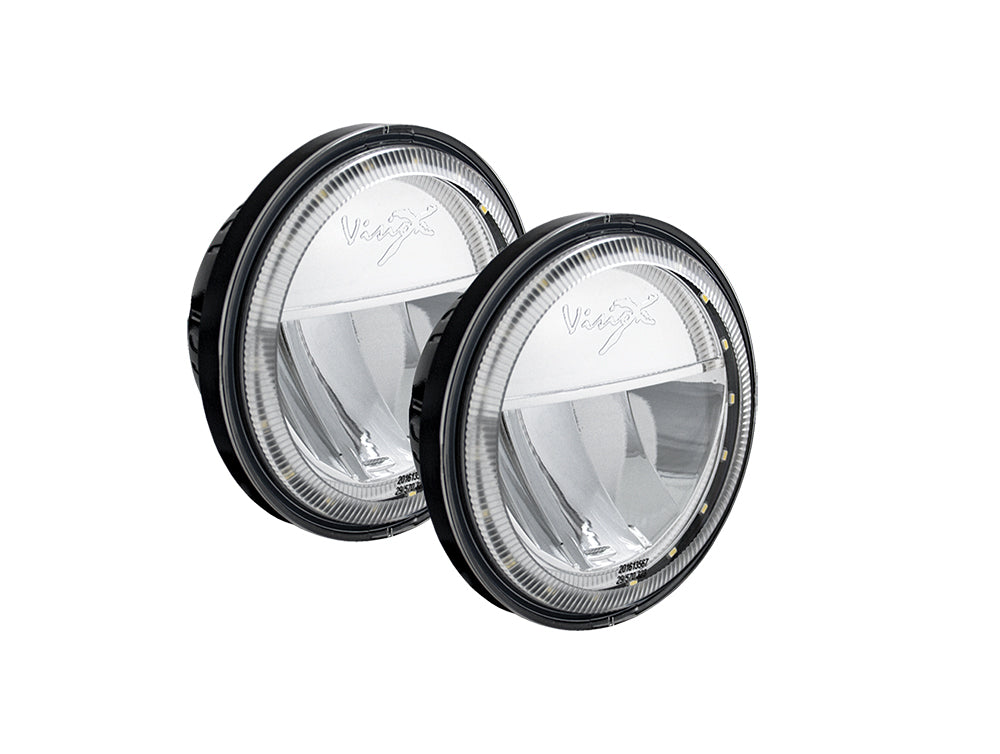

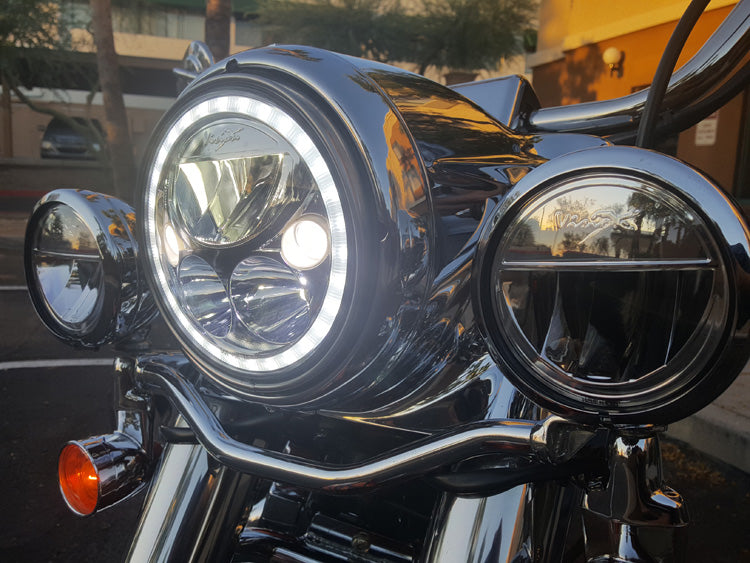

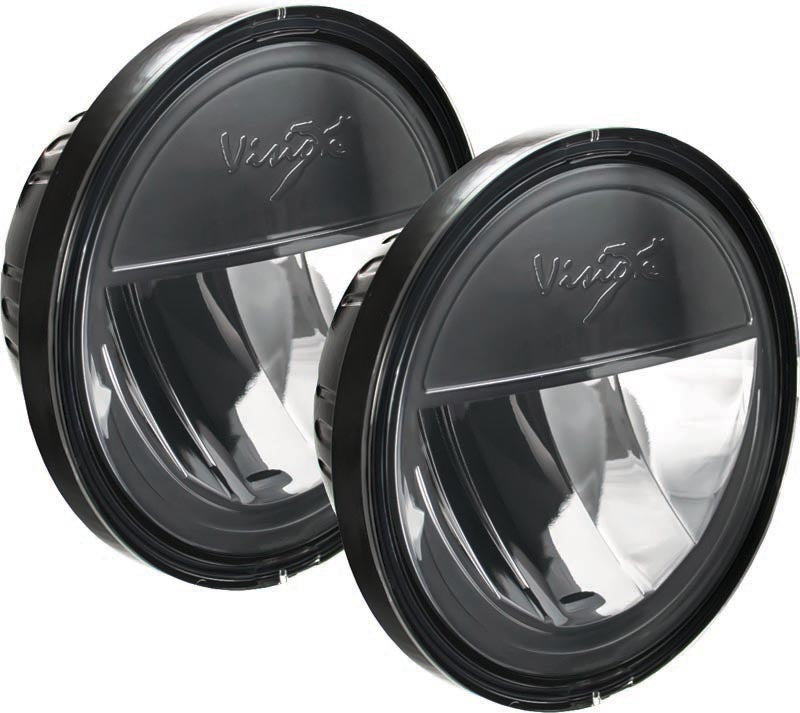

Headlights for 7", 5.75". LED Passing Lamps too!
VISION X INSTALL VIDEO:
